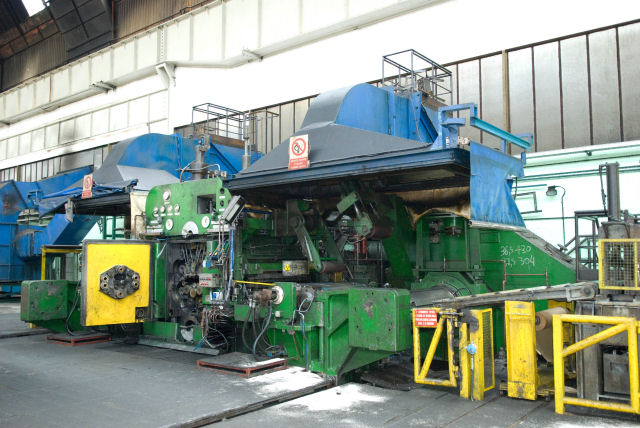

Sendzimir ZR 22 42” Rolling Mill – Max width 1050mm – Max speed 235/min
Specification: max speed 235 metres/min, range of thickness 0.30 - 6.00mm, max width 1050mm, max coil weight 17000Kg, max tension 300KN, max roll separating force: 6000KN, diameter of rolling work 48-61mm, type of wiper for rolling oil pollastrelli wipers, rolling oil 5000litres/min, oil renoform 29
Features: automatic flatness shape roll measuring system, two crown flatness adjustment systems, first pass/pay off reeler, left & right main reelers, two gamma ray thickness measuring systems, two reversible paper wrapper/un-wrapper, one paper un-wrapper, fume extraction system, oil & coolant system,
Motor power by Marelli comprising: mill 1325KW, winders two x 1175KW, three marelli 1500KW generators, marelli 4000HP sincrono (synchronized motor), operators control panel room and freestanding control panels.
Massive quantity of new and unused spare parts!!
|
