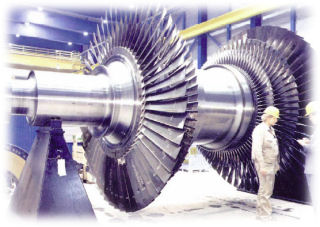

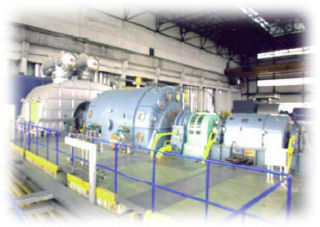

The principle design features of the straight condensing steam turbines are all structurally impulse, non reheating, single cylinder type for power plants. The turbines use the advance 3-D technology for through flow path. The units are quite compact in structural size, but with high performance. These steam turbines are fully CNC controlled through the internal hydraulic system. The products are equipped with protective monitoring system, which would ensure the safety and reliability of the steam turbines.
Model No. |
SC-RT-50 |
SC-RT-60 |
SC-RT-135 |
Unit |
Output |
50 |
60 |
135 |
MW |
Speed |
3000 |
3000 |
3000 |
rpm |
Pressure |
8.83 |
8.83 |
13.24 |
MPa.a |
Temperature |
535 |
535 |
535 |
°C |
Flow |
182 |
220 |
399 |
t/h |
Exhaust Pressure |
4.82 |
5.42 |
4.9 |
kPa.a |
Steam Rate |
Design Condition |
5.74 |
5.34 |
4.33 |
kg/kW.h |
Condensing Condition |
3.62 |
3.67 |
2.94 |
kg/kW.h |
Heat Rate |
Design Condition |
6436 |
6780 |
7533 |
kg/kW.h |
Condensing Condition |
9207 |
9120 |
8159 |
kg/kW.h |
Feed Water Temperature |
217 |
228 |
244 |
°C |
Weight of Turbine |
127 |
127 |
395 |
ton |
Weight of Upper Half |
25 |
25 |
N/A |
ton |
Weight of Turbine Rotor |
18.7 |
18.7 |
N/A |
ton |
External Dimension |
7.5 x 7.1 x 3.3 |
7.5 x 7.1 x 3.3 |
13.6 x 7.3 x 5.2 |
m |
Center Height of Turbine |
800 |
800 |
N/A |
mm |
