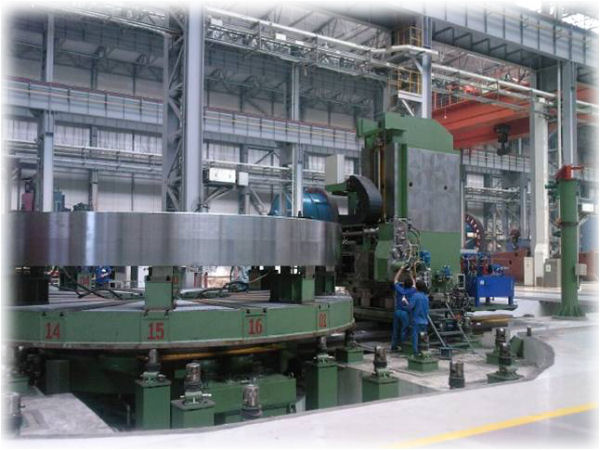

Gear Hobbing Machines
Technical Specifications
Model No. (RF-CNC) 50 / 140 - 160 38 / 85 - 100 38 / 60 - 72 Unit
Max. Gear Cutting Diameter (Single Indexing)  16000 10000 7200 mm
Max. Gear Cutting Diameter (Hobbing) 14000 8500 6000 mm
Min. Gear Cutting Diameter 3700 2900 2900 mm
Max. Gear Width
   For Straight Teeth 1800 1400 1400 mm
   For 30º Inclined Teeth 1500 1200 1200 mm
Max. Module (Single Indexing) 60 60 60
Max. Module (Hobbing) 40 40 40
Table Diameter 5200 4000 4000 mm
Index Gear Diameter 5000 3800 3800 mm
Table Loading Capacity 250 150 150 ton
Column Travel (X-Axis) 6150 3550 2150 mm
Milling Head Tangential Travel (V-Axis) 400 400 400 mm
Milling Head Vertical Travel (Z-Axis) 2000 1600 1600 mm
Milling Head Swiveling (A-Axis) ± 30 ± 30 ± 30 degree
Main Milling Power 16 - 125 - 125 16 - 125 - 125 16 - 125 - 125 kW
Milling Spindle Rotation Speed (B-Axis) 12.5 - 100 - 160 12.5 - 100 - 160 12.5 - 100 - 160 rpm
Max. Table Rotation Speed (C-Axis) 0.52 0.70 0.70 rpm


Note: (1) All above machines are CNC 6-axis controlled.
         (2) The company reserves the right of making changes to the specifications for product improvements.
         (3) All above referred technical specifications are based upon existing achievements.
