Single/Double Gantry Boring Mills
Specifications & Range
Model No. GanMill-DGM Unit (Imperial)
Machine Type Gantry Moving
X-Axis Travel 12 - 60 m (39' - 196')
Y-Axis Travel 7 - 18 m (23' - 59')
Z-Axis Travel (Ram) 2 - 4.5 m (6.5' - 15')
W-Axis Travel (Crossrail) 3 - 10 m (10' - 33')
Distance Between Columns 6 - 16 m (20' - 52')
Machine Height (Z + W) 5 - 14 m (16' - 46')
Ram Shape Square
Option 1  Ram Cross Section 420 x 520 mm (17" x 20")
              Spindle Power 63 kW (84 HP)
Option 2  Ram Cross Section 600 x 700 mm (23" x 27")
              Spindle Power 90 kW (120 HP)
Max. Torque 9000 Nm
Max. Spindle Speed 2500 rpm
Taper #50/60 ISO
Table Diameter 6 - 12.5 m (20' - 41')
Swing Diameter 8 - 15 m (26' - 49')
Max. Torque on Table 1000 kNm
Loading Capacity 100 -1000 ton


Note: The above data represent the maximum values of the specification of the machine. Imperial dimensions are in brackets. The company reserves the right to make changes.

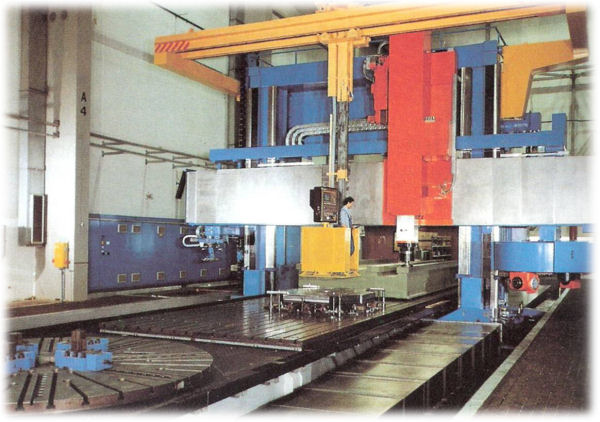

Single/Double Gantry Mill

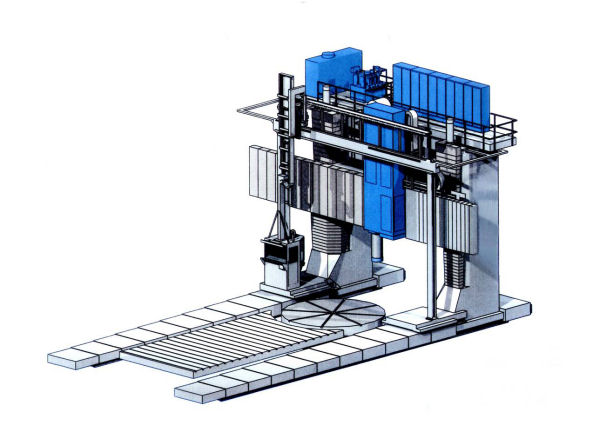

Single/Double Gantry Mill
