Horizontal Boring Mills
Specifications & Range
Model No. FB-200 Unit (Imperial)
Boring Spindle Diameter 200 mm (7.9")
Milling Spindle Diameter 330 mm (13")
Tool Taper # 50/60 ISO
X-Axis Travel (longitude) 4 - 30 m (13'1" - 98'5")
Y-Axis Travel (height) 3 - 7 m (9'10" - 23')
Z-Axis Travel (spindle) 1250 mm (4'1")
W-Axis Travel (ram) 1200 mm (3'11")
Z + W Combined Stroke 2450 mm (8')
Main Spindle Power 100 kW (134 HP)
Max. Spindle Speed 900 rpm
Max. Torque 16 kNm
Ram Cross Section 460 x 550 mm (18.1" x 21.7")
Rotary Table Size 6 x 6 m (19'8" x 19'8")
Loading Capacity 20 - 250 ton

Specifications & Range
Model No. FB-225 Unit (Imperial)
Boring Spindle Diameter 225 mm (8.9")
Milling Spindle Diameter 350 mm (13.8")
Tool Taper # 50/60 ISO
X-Axis Travel (longitude) 4 - 40 m (13.1' - 131')
Y-Axis Travel (height) 3 - 7 m (9'10" - 23')
Z-Axis Travel (spindle) 1250 mm (4'1")
W-Axis Travel (ram) 1200 mm (3'11")
Z + W Combined Stroke 2450 mm (8')
Main Spindle Power 100 kW (134 HP)
Max. Spindle Speed 900 rpm
Max. Torque 16 kNm
Ram Cross Section 460 x 550 mm (18.1" x 21.7")
Rotary Table Size 6 x 6 m (19'8" x 19'8")
Loading Capacity 20 - 250 ton

Specifications & Range
Model No. FB-260 Unit (Imperial)
Boring Spindle Diameter 260 mm (10")
Taper # 50/60 ISO
X-Axis Travel 8 - 30 m (26' - 98')
Y-Axis Travel 6 - 10 m (20' - 33')
Z-Axis Spindle Travel 1500 mm (59")
W-Axis Ram Travel 2000 mm (78")
Z + W Combined Travel 3500 mm (137")
C-Axis Travel +/- 200°
C-Axis Speed 0 - 5 rpm
C-Axis Torque 12.5 kNm
C-Axis Clamping Force 40 kNm
Spindle Power 120 kW (161 HP)
Max. Spindle Speed 1650 rpm
Max. Torque 20 kNm
Ram Cross Section 620 x 740 mm (24" x 29")
Max. Table Size 6 x 12 m (20' x 39')
Table Loading Capacity 100 - 1000 ton

Specifications & Range
Model No. FB-320 Unit (Imperial)
Boring Spindle Diameter 320 mm (12.5")
Taper # 50/60 ISO
X-Axis Travel 8 - 40 m (26' - 131')
Y-Axis Travel 8 - 14 m (26' - 46')
Z-Axis Spindle Travel 1700 mm (67")
W-Axis Ram Travel 2500 mm (98")
Z + W Combined Travel 4200 mm (165")
C-Axis Travel +/- 200°
C-Axis Speed 0 - 5 rpm
C-Axis Torque 16 kNm
C-Axis Clamping Force 50 kNm
Spindle Power 140 kW (187 HP)
Max. Spindle Speed 1500 rpm
Max. Torque 30 kNm
Ram Cross Section 830 x 980 mm (33" x 38")
Max. Table Size 6 x 12 m (20' x 39')
Table Loading Capacity 100 - 1000 ton


Note: The above data represent the maximum values of the specification of the machine. Imperial dimensions are in brackets. The company reserves the right to make changes.

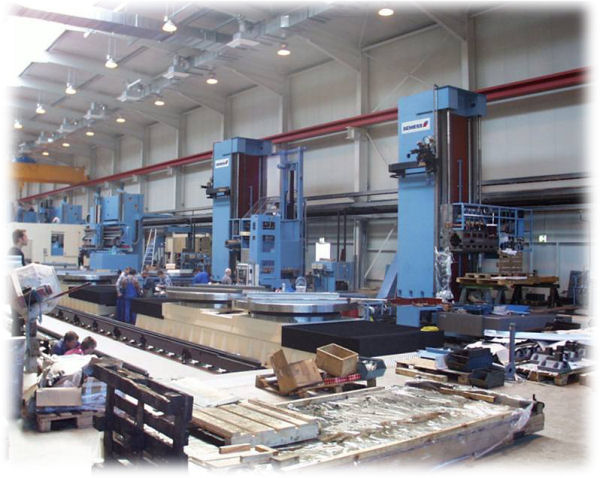

Horizontal Boring Mill

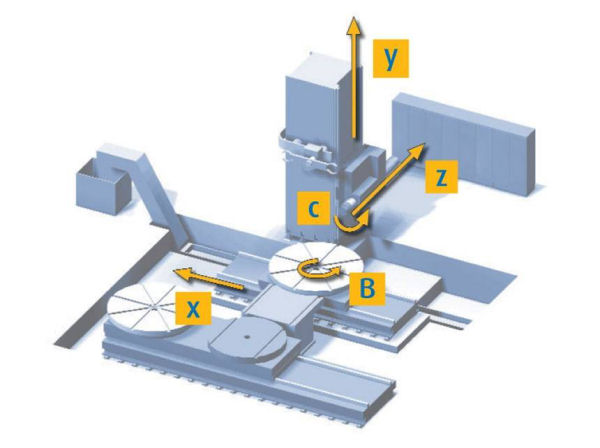

Horizontal Boring Mill
