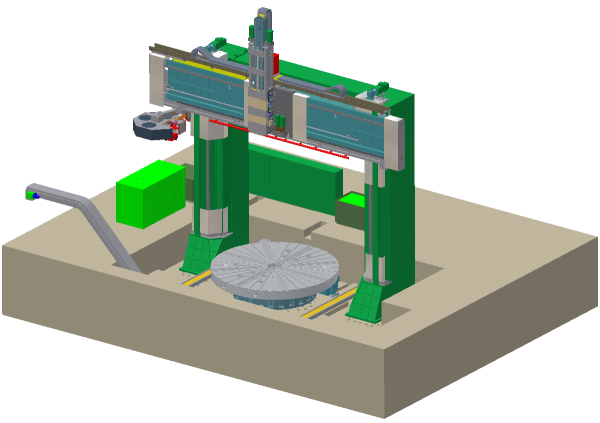

| Specifications & Range |
| Model No. |
DC-VBM |
Unit |
(Imperial) |
| Machine Type |
Double Column |
|
|
| Table Diameter |
6 - 12.5 |
m |
(20' - 41') |
| Swing Diameter |
8 - 16 |
m |
(26' - 52') |
| Max. Torque on Table |
1000 |
kNm |
|
| Loading Capacity |
100 -1000 |
ton |
|
| Machining Height |
5 - 14 |
m |
(16' - 46') |
| Ram Stroke |
2 - 4.5 |
m |
(6.5' - 15') |
| Ram Shape |
Square |
|
|
| Option 1 Ram Cross Section |
420 x 520 |
mm |
(17" x 20") |
| Spindle Power |
63 |
kW |
(84 HP) |
| Option 2 Ram Cross Section |
600 x 700 |
mm |
(23" x 27") |
| Spindle Power |
90 |
kW |
(120 HP) |
| Max. Spindle Speed |
2500 |
rpm |
|
| Max. Torque |
9000 |
Nm |
|
| Taper |
#50/60 |
ISO |
|
Note: The above data represent the maximum values of the specification of the machine. Imperial dimensions are in brackets. The company reserves the right to make changes.
|
| Specifications & Range |
| Model No. |
DC-VBM-35 |
DC-VBM-35-M |
Unit |
(Imperial) |
| Table Diameter |
3080 |
3080 |
mm |
(10' 1") |
| Swing Diameter |
3500 |
3500 |
mm |
(11' 6") |
| Max. Machining Height |
2000 - 2500 |
2000 - 2500 |
mm |
(6' 7" - 8' 2") |
| Number of Ram |
1 |
1 |
unit |
|
| Ram Stroke |
1600 |
1600 |
mm |
(5' 3") |
| Ram Cross Section |
300 x 300 |
300 x 300 |
mm |
(11.87" x 11.8") |
| C-Axis Power |
none |
22 |
kW |
(29 HP) |
| Tool Feed Rate |
0.1 - 400 |
0.1 - 400 |
mm/min |
(0.004" - 15.7") |
| Table Turning Speed |
0.63 - 63 |
0.63 - 63 |
rpm |
|
| Table Power |
55 |
55 |
kW |
(74 HP) |
| Table Torque |
100 |
100 |
kNm |
|
| Tool Taper |
# 50/60 |
# 50/60 |
ISO |
|
| Loading Capacity |
30 |
30 |
ton |
|
| |
|
| Specifications & Range |
| Model No. |
DC-VBM-40 |
Unit |
(Imperial) |
| Table Diameter |
3600 |
mm |
(11' 10") |
| Swing Diameter |
4000 |
mm |
(13' 1") |
| Max. Machining Height |
2000 - 4000 |
mm |
(6' 7" - 13' 1") |
| Number of Ram |
2 |
unit |
|
| Ram Stroke |
1500 - 3000 |
mm |
(4' 11" - 9' 10") |
| Ram Cross Section |
400 x 400 |
mm |
(15.7" x 15.7") |
| Tool Feed Rate |
0.1 - 400 |
mm/min |
(0.004" - 15.7") |
| Table Turning Speed |
0.5 - 50 |
rpm |
|
| Table Power |
55 |
kW |
(74 HP) |
| Table Torque |
125 |
kNm |
|
| Tool Taper |
# 50/60 |
ISO |
|
| Loading Capacity |
50 |
ton |
|
| |
|
| Specifications & Range |
| Model No. |
DC-VBM-50 |
Unit |
(Imperial) |
| Table Diameter |
4500 |
mm |
(14' 9") |
| Swing Diameter |
5000 |
mm |
(16' 5") |
| Max. Machining Height |
2000 - 5000 |
mm |
(6' 7" - 16' 5") |
| Number of Ram |
2 |
unit |
|
| Ram Stroke |
1500 - 3000 |
mm |
(4' 11" - 9' 10") |
| Ram Cross Section |
400 x 400 |
mm |
(15.7" x 15.7") |
| Tool Feed Rate |
0.1 - 400 |
mm/min |
(0.004" - 15.7") |
| Table Turning Speed |
0.4 - 40 |
rpm |
|
| Table Power |
55 |
kW |
(74 HP) |
| Table Torque |
160 |
kNm |
|
| Tool Taper |
# 50/60 |
ISO |
|
| Loading Capacity |
63 |
ton |
|
| |
|
| Specifications & Range |
| Model No. |
DC-VBM-60 |
Unit |
(Imperial) |
| Table Diameter |
5700 |
mm |
(18' 8") |
| Swing Diameter |
6300 |
mm |
(20' 8") |
| Max. Machining Height |
2000 - 6000 |
mm |
(6' 7" - 19' 8") |
| Number of Ram |
2 |
unit |
|
| Ram Stroke |
1500 - 3000 |
mm |
(4' 11" - 9' 10") |
| Ram Cross Section |
400 x 400 |
mm |
(15.7" x 15.7") |
| Tool Feed Rate |
0.1 - 400 |
mm/min |
(0.004" - 15.7") |
| Table Turning Speed |
0.3 - 30 |
rpm |
|
| Table Power |
125 |
kW |
(168 HP) |
| Table Torque |
400 |
kNm |
|
| Tool Taper |
# 50/60 |
ISO |
|
| Loading Capacity |
160 |
ton |
|
Note: The above data represent the maximum values of the specification of the machine. Imperial dimensions are in brackets. The company reserves the right to make changes.
|
| Specifications & Range |
| Model No. |
DC-VBM-80 |
Unit |
(Imperial) |
| Table Diameter |
7200 |
mm |
(23' 7") |
| Swing Diameter |
8000 |
mm |
(26' 3") |
| Max. Machining Height |
4000 - 5000 |
mm |
(13' 1" - 16' 5") |
| Number of Ram |
2 |
unit |
|
| Ram Stroke |
2500 |
mm |
(8' 2") |
| Ram Cross Section |
400 x 400 |
mm |
(15.7" x 15.7") |
| C-Axis Power |
28 |
kW |
(38 HP) |
| Tool Feed Rate |
0.1 - 400 |
mm/min |
(0.004" - 15.7") |
| Table Turning Speed |
0.25 - 25 |
rpm |
|
| Table Power |
125 |
kW |
(168 HP) |
| Table Torque |
400 |
kNm |
|
| Tool Taper |
# 50/60 |
ISO |
|
| Loading Capacity |
250 |
ton |
|
Note:
(1) The standard configuration for machines is with 2 rams, the 1st ram is with life spindle and the 2nd ram is with turning function only.
|
| Specifications & Range |
| Model No. |
DC-VBM-100 |
Unit |
(Imperial) |
| Table Diameter |
8000 |
mm |
(26' 3") |
| Swing Diameter |
10000 |
mm |
(32' 10") |
| Max. Machining Height |
4000 - 5000 |
mm |
(13' 1" - 16' 5") |
| Number of Ram |
2 |
unit |
|
| Ram Stroke |
2500 |
mm |
(8' 2") |
| Ram Cross Section |
400 x 400 |
mm |
(15.7" x 15.7") |
| C-Axis Power |
40 |
kW |
(54 HP) |
| Tool Feed Rate |
0.1 - 400 |
mm/min |
(0.004" - 15.7") |
| Table Turning Speed |
0.25 - 25 |
rpm |
|
| Table Power |
125 |
kW |
(168 HP) |
| Table Torque |
400 |
kNm |
|
| Tool Taper |
# 50/60 |
ISO |
|
| Loading Capacity |
250 |
ton |
|
Note:
(1) The standard configuration for machines is with 2 rams, the 1st ram is with life spindle and the 2nd ram is with turning function only.
(2) The above data represent the maximum values of the specification of the machine. Imperial dimensions are in brackets. The company reserves the right to make changes.
|
