Cold Rolling Mills

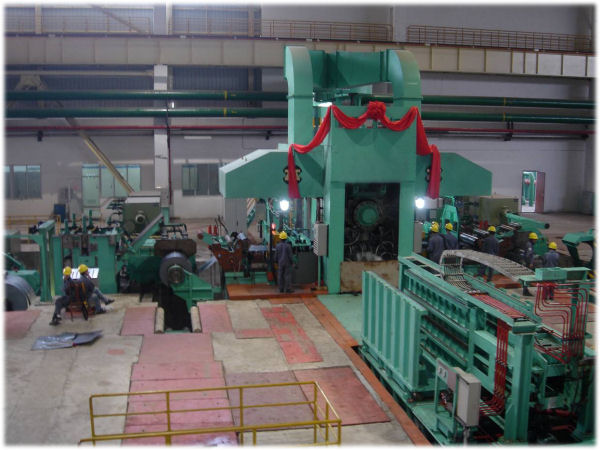

Example; 6-Hi Reversible Cold Rolling Mill

Annual Yield – 200,000 Tons

Incoming Material

Hot rolling strip after pickling
Material   common carbon steel
  (Q195, Q215, 08AL, 20, SPCC, SPCD….)
Mechanical property  σs ≤ 360 (mm2)
Thickness 1.8 ~ 4.5 mm (for common carbon steel)
Width 800 ~ 1250 mm
Coil diameter (inner/outer) Ф 610/ Ф 900 ~ 2000 mm
Max coil weight  25 tons

Finished Product

Thickness   0.2 ~ 1.5 mm (for common carbon steel)
Width 800 ~ 1250 mm
Coil diameter (inner/outer) Ф 610/ Ф 900 ~ 2000 mm
Max coil weight  25 tons

Requirements for Raw Material

Longitudinal thickness deviation of raw material ≤ ± 0.2 mm
Longitudinal thickness change rate of raw material ≤ ± 0.02 mm/m
Transverse thickness deviation of raw materia ≤ ± 2 %

Product Precision

Thickness tolerance in steady state

± 5 μm (δ < 0.5 mm)
± 1 % δ (δ ≥ 0.5 mm)

The thickness tolerance in accelerating / decelerating is 2 times more than rolling in steady speed.

Note: The precision of the products is guaranteed based on the precision of incoming raw material quality.

Main Technical Data

Roll Assembly

Item

Working Roll

Intermediate Roll

Supporting Roll

Roll diameter (mm)

Ф 400 ~ 370

Ф 450 ~ 415

Ф 1250 ~ 1190

Roller length (mm)

1450

1450

1350

Material

9Cr3MoV

9Cr3MoV

9Cr2MoV

Heat treatment

Electro-slag re-melting forged steel with quenched surface

Hardness (HS)

HS93-97

HS75-80

HS65-70

Processing Parameters

Item

Specification

Maximum Rolling force

18,000 KN

Maximum Rolling torque

135 KN.m

Pay-off tension

8 ~ 80 KN

Coiling tension

17 ~ 170 KN (V < 640 m/min)

10 ~ 100 KN  (V ≥ 640 m/min)

Speed

Threading

18 m/min

Rolling

0 ~ 450 ~ 1,000 m/min

Coiling

1,050 m/min (Maximum)

Acceleration of mill

0.8 m/s2

Deceleration of mill

0.8 m/s2
